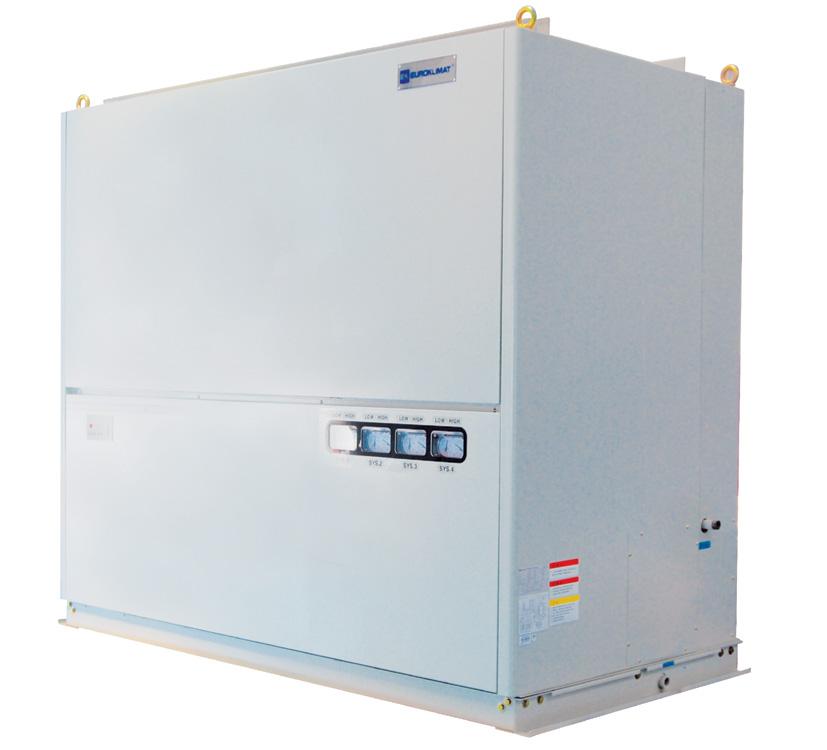

    Humidification / Air Purification Rooftop Water Cooled Package Unit For Schools / Banks

    Ask Lasest Price
    Brand Name : EuroKlimat
    Model Number : EKWP-B
    Certification : ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Price : Negotiation
    Payment Terms : T/T or L/C
    Supply Ability : 900pcs per month
    Delivery Time : 15 working days after received your payment
    • Product Details
    • Company Profile

    Humidification / Air Purification Rooftop Water Cooled Package Unit For Schools / Banks

    Humidification and air purification rooftop package unit


    Specifications:


    Sleeve tube series: (EKWP35B~EKWP155B)


    Model EKWP35BEKWP55BEKWP70BEKWP80BEKWP110BEKWP125BEKWP155B
    Cooling capacityW35000490006800078000110000125000155000
    Air flowm3/h700085001100014000180002000025000
    External static pressurePa100(0)150(0)150(0)200250250250
    SounddB(A)65677072737475
    Cooling capacity modulation range%100,50010,067,330

    1,007,

    550,250

    1,007,

    550,250

    100,806,

    040,200

    10,083,675,

    033,170

    1,008,671,

    574,329,140

    Power supply 380V/3N~/50Hz
    Total input power for coolingkW9.5(9)13.2(12.5)18.3(17.1)18.524.828.536.8
    Refrigerant model R22
    CompressorTypeHigh-efficiency fully hermetic volute compressor
    Qty.Set2344567
    CondenserType High-efficiency tube-in-tube coaxial heat exchanger with multiple threads
    Water flowm3/h7.710.714.816.623.226.433.0
    Water pressure dropkPa55656755715866
    EvaporatorType Shutter-type hyperbolic fins made from mechanically expanded quality copper tubes specially designed for air conditioners
    Flow control Capillary
    FanType Low-noise centrifugal fan with dual air inlets
    Transmission V-belt transmission
    Air filterSizemm1025X7751466x7251656x825529x660529x660595x686661x686
    Qty.Piece1116666
    DimensionsLengthmm1280172419242002200222222422
    Widthmm6787378371061106112441244
    Heightmm1903(2173)1922(2196)2036(2405)1990199020692069
    WeightCooling only 280(300)455(485)610(650)72093010101235
    Models for cooling only units with electric heatersEKWP35BDEKWP55BDEKWP70BDEKWP80BDEKWP110BDEKWP125BDEKWP155BD
    Electric heating capacityW12000210002700036000420004800060000
    Weight of models with electric heaterskg293(313)473(503)632(672)76096010601265

    Shell-tube series: (EKWP75B~EKWP205B)


    Model

    EKWP

    75B

    EKWP

    85B

    EKWP

    100B

    EKWP

    115B

    EKWP

    125B

    EKWP

    135B

    EKWP

    145B

    EKWP

    165B

    EKWP

    185B

    EKWP

    205B

    Cooling capacityW7500085000100000115000125000135000145000165000185000205000
    Air flowm3/h14000150001700020000220002200024000260002900033000

    External static

    pressure

    Pa150150200200200200200250300300
    SounddB(A)70707172727373747475
    Cooling capacity modulation range%100,500100,80,60,
    40,20,0
    10,067,330100,86,71,57,
    43,29,14,0
    100,75,50,
    25,0
    100,78,67,56,
    44,33,22,0
    100,80,60,
    40,20,0
    Power supply 380V/3N~/50Hz
    Total input power for
    cooling
    kW18.619.52328.529.831.53338.746.250.5
    Refrigerant model R22
    CompressorTypeHigh-efficiency fully hermetic volute compressor
    Qty.Set2233344455
    CondenserType High-efficiency shell-tube heat exchanger
    Water flowm3/h16.118.021.224.726.628.630.635.039.843.9
    Water pressure dropkPa17222220232224393850
    EvaporatorType Shutter-type hyperbolic fins made from mechanically expanded quality copper tubes specially designed for air conditioners
    Flow control Capillary
    FanType Low-noise centrifugal fan with dual air inlets
    Transmission V-belt transmission
    Air filterSizemm680x470680x470680x520680x520680x520686x661686x661680x650680x733680x797
    Qty.Piece6666666666
    DimensionsLengthmm1850185020002000200022202220241026602850
    Widthmm1000100010001000100010801080117311731173
    Heightmm1935193519351935193519351935192819281928
    WeightCooling only 69071084089589510601080116012501350
    Models for cooling only units with
    electric heaters
    EKWP
    75BD
    EKWP
    85BD
    EKWP
    100BD
    EKWP
    115BD
    EKWP
    125BD
    EKWP
    135BD
    EKWP
    145BD
    EKWP
    165BD
    EKWP 185BDEKWP
    205BD
    Electric heating capacityW36364248484860606060
    Weight of models with
    electric heaters
    kg73075088594594511101150123013201420

    Note:


    ■ Working conditions for cooling capacity test:
    Temperature of indoor dry/wet bulb: 27°C/19°C; temperature of inlet/outlet water temperature: 30°C/35°C.
    ■ Parameters within brackets () are applicable for units with a sway static pressure box.
    ■ The external static pressure refers to the static pressure under nominal air flow.
    The static pressure varies based on customer requirement. The input power of a unit may also change. For details, please refer to the
    nameplate on a unit.
    ■ The performance and sound level of a unit may change as installation site and parameters such as air flow, static pressure, temperature of
    return air, water flow and temperature of inlet water change.
    ■ Electric heating units are equipped with a built-in electric heating pipe.
    ■ Specification parameters are subject to change due to product improvement without further notice. Please refer to the nameplate and label
    on a unit.


    Description:


    Overview

    EKWP-B series water-cooled packaged units are a new generation of modular air-conditioning units featuring the state-of-art EK air conditioner designs. They have complete models and a wide application range. Some models are equipped with a static pressure box and can be used for direct air supply. EKWP series units are widely used in marketplaces, hotels, schools, banks, post offices and industrial processes. Electric heaters are available for all models to serve heating purposes.

    Unit Features

    • All units are equipped with compliant scroll compressors of the latest design, making the units more reliable, stable, comfort and energy-efficient compared to units using traditional compressors.

    • EKWP35B and later models have multiple independent cooling systems, which facilitate capacity modulation and help saving more energy.

    • Full series models can be equipped with optional electric heaters.

    • Controlled by micro-computers, the units are easier to operate and run more smoothly.

    Micro-computer Control

    EKWP-B water-cooled packaged units are equipped with a complete suite of smart control functions.

    Four operation modes: COOL/HEAT/FAN/COOL&HEAT, namely cooling/heating/air supply/auto (cooling & heating) (Cooling-only units only have a COOL mode. All features are disabled in the HEAT mode).

    Temperature setting range (TEMP): 16°C~30°C.

    Timer for ON/OFF (TIMER): 1~24 hours

    Energy saver (EG-SAVER)

    Auto failure detection and alarm

    The LED digital display shows the temperature setting, timed on/off or alarms.

    Protective time lag for compressor startup/shutdown

    Auto load-balancing for compressors:

    The unit controller automatically records the working time of each compressor. Compressors that worked fewer hours have a higher priority for startup, while compressor that worked more hours have a higher priority for shutdown.

    Remote Control

    The units can be turned on/off within a 1000-meter range.


    Centralized Remote Control and Smart BMS Control


    Using a special data converter, you can apply centralized network control over 32 x 32 (1024) water-cooled packaged units within a 1000-meter range. In addition, these units can also be networked into a BMS (Modbus protocol) using special data concreters and gateways.


    Applications:


    EKWP series units are widely used in marketplaces, hotels, schools, banks, post offices and industrial processes. Electric heaters are available for all models to serve heating purposes.


    Competitive Advantage:


    EKWP-B series water-cooled packaged units are a new generation of modular air-conditioning units featuring the state-of-art EK air conditioner designs. They have complete models and a wide application range. Some models are equipped with a static pressure box and can be used for direct air supply.
